Foil Boxes
Foil boxes are the components that connect your hydrofoil to your board. Standard mounting configurations are the deep tuttlebox style foil box or the twin track style foil box system.
The deep tuttle style works great on thicker boards like sailboards and is a secure method of attachment that holds the foil mast to the board by bolting through the top of the board and pullilng the mast head snug up against the inside of the box.
The twin track foil box system is a versatile system that allows is better on thinner hydrofoil boards, as it only requires a little over an inch of board thickness to install. This system also allows for some adjustment in the placement of the foil mast forward and aft on the foil board.
The twin track system can be done by installing 2 foil tracks into a board or by installing a high density foam cassette that has two boxes already installed in it. If the foam density of the board is less that 2lb/cu ft we would recommend using a cassette.
The deep tuttle style works great on thicker boards like sailboards and is a secure method of attachment that holds the foil mast to the board by bolting through the top of the board and pullilng the mast head snug up against the inside of the box.
The twin track foil box system is a versatile system that allows is better on thinner hydrofoil boards, as it only requires a little over an inch of board thickness to install. This system also allows for some adjustment in the placement of the foil mast forward and aft on the foil board.
The twin track system can be done by installing 2 foil tracks into a board or by installing a high density foam cassette that has two boxes already installed in it. If the foam density of the board is less that 2lb/cu ft we would recommend using a cassette.
- Product
- Qty in Cart
- Quantity
- Price
- Subtotal
-
Foil Box, 16" Chinook track (#331)
Chinook Sailing Products
$27.36Foil Box, 16" Chinook track (#331)R51-3916$27.36 -
16" Dual Track Foil Box
$143.0016" Dual Track Foil Box Cassette for downwind foilboards or foilboards where you want a little more ability to adjust the foil position. Cassette features 16" Chinook 331 Foil Tracks set with epoxy into 4lb Divinycell foam that has a high compression...R10-0219$143.00 -
(W) Futures 10.75" 1-Shot Longboard Fin Box
Futures Fins
$13.84(W) Futures 10.75" 1-Shot Center longboard center fin box and hydrofoil track box. Designed by the fin geniuses at Futures this longboard center box features a one piece design and stress distributing flange system in an under the glass fin box...R13-1530$13.84 -
(B) Futures 10.75" 1 - Shot Center Longboard Fin Box
Futures Fins
$13.84(B) Futures 10.75" 1-Shot Center longboard center fin box and hydrofoil track box. Designed by the fin geniuses at Futures this longboard center box features a one piece design and stress distributing flange system in an under the glass fin box...R13-1532$13.84 -
10in. Fin Box, Chinook (#300)
Chinook Sailing Products
$20.8810in. Fin Box, Chinook Strongbox (#300) One piece construction sailboard fin box. Also makes a great box for twin track foil board systems.R51-3910$20.88 -

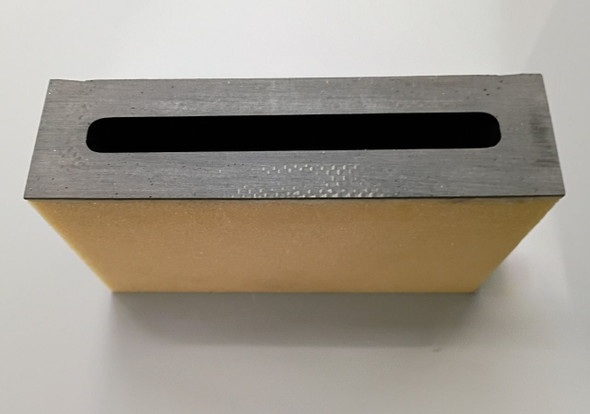

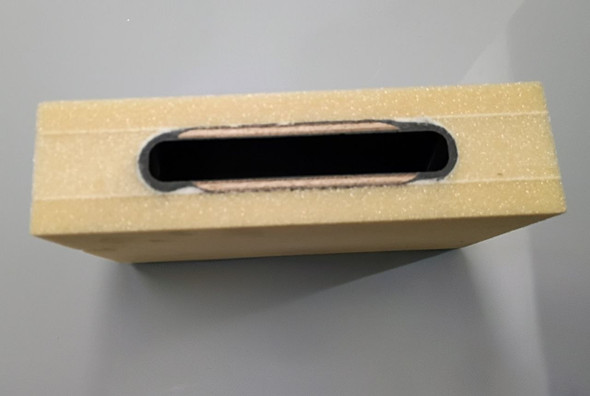

4. 75in. Flanged Hydrofoil Box (Tuttle Fin)
$92.504. 75in. Flanged Hydro Foil box accepts the mast head of the hydrofoil for SUP, Surf, Kite, and Sailboard hydrofoils that have a "Tuttle" head.Made from carbon fiber and epoxy resin to have a high strength to weight ratio. This product is made in house;...R53-4313$92.50 -
Foil Dual Track Box Cassette
$110.00Twin track foil box cassette, features two parallel fin boxes set in a high density PVC foam block at the proper spacing for track mount foil board pedastools. This video shows how to install in an existing board:R10-0217$110.00
