Reinforcements
Fiberglass Cloth, Carbon Fiber, Carbon Fiber Braid, Knit Fabrics, Kevlar Fabrics, Chopstrand Mat and Woven Roving
Fiberglass Supply inventories a wide variety of reinforcements commonly used in Fiber Reinforced Plastics and Advanced Composite fabrication. We are continually adding new products in response to customer requirements. Additionally many of our product lines have additional items available, on a non standard basis. The reinforcements listed below are generally available for immediate shipment as full rolls or as cut yardage. Check with us for exact lengths or weights on full rolls available at time of order. To protect material integrity and for your convenience, Cut Yardage is rolled on cardboard tube and wrapped for protection. Cut Yardage is clearly labeled with Yardage or Weight, Fabric Style, Fabric Weight and Fabric Finish. When ordering cut yardage order by the lineal yard. Conversions have been provided where applicable for the purpose of estimating the cost of reinforcements sold by the pound. You will be invoiced for actual weight of the rolled off item. Contact us for information, specifications, pricing and availability if the material you require is not listed below. To make it easier for the customer to find the material needed we have broken reinforcements into categories.
- Product
- Qty in Cart
- Quantity
- Price
- Subtotal
-
Style 284, 5.8 oz. X 60in. Carbon Fiber Fabric
$47.65Style 284, 5.8 oz. X 60in. Carbon Fiber Fabric All cloths will be sold by the Linear Yard - unless otherwise stated. Style 284, 5.8 oz./yd.² (197 g/m²) 12 Warp 3K Carbon X 12 Fill 3K Carbon fiber fabric, Twill Weave, 8.7 mils (.22 mm)...C53-6289$47.65 -
6oz 2x2 Twill Carbon Fiber Fabric 50" wide
$44.40All cloths will be sold by the Linear Yard - unless otherwise stated. 6oz 2x2 Twill Carbon Fiber Fabric - 50" wide, woven here in the USA. This carbon fiber fabric is woven with a slightly higher yarn per inch count to minimize the...C53-6296$44.40 -
Style 613 X 60" - 11.1OZ Carbon W/Kevlar Tracers
$95.75Style 613 X 60" - 11.1oz Carbon Fiber Fabric. This fabric features a 6K yarn in a 5 harness satin weave (yarn goes over 4 under 1) to provide maximum drapeability and build. 60" width makes it usefull for parts like car hoods where the extra width...C53-6400$95.75 -
12oz Double Bias Carbon Fiber Fabric
$88.2112oz Double Bias Carbon Fiber Fabric All cloths will be sold by the Linear Yard - unless otherwise stated. Knit double bias carbon fiber cloth, +/- 45 degrees, 12 oz per sq. yd., great for structural applications, concrete reinforcement, spars,...C53-7396$88.21 -
2in. Wide X 5.7 oz., Graphite (Carbon Fiber) Tape
$6.172in. Wide X 5.7 oz., Graphite (Carbon Fiber) Tape All cloths will be sold by the Linear Yard - unless otherwise stated. Plain weave carbon fiber tape, use with epoxy or vinyl-ester resin as a local reinforcement or a wrap. As a rule we roll...C56-3376$6.17 -
3in. Wide X 5.7 oz., Graphite (Carbon Fiber) Tape
$8.773in. Wide X 5.7 oz., Graphite (Carbon Fiber) Tape All cloths will be sold by the Linear Yard - unless otherwise stated. Plain weave carbon fiber tape, use with epoxy or vinyl-ester resin as a local reinforcement or a wrap. As a...C56-3414$8.77 -
4in. Wide X 5.7 oz., Graphite (Carbon Fiber) Tape
$9.424in. Wide X 5.7 oz., Graphite (Carbon Fiber) Tape All cloths will be sold by the Linear Yard - unless otherwise stated. Plain weave carbon fiber tape, use with epoxy or vinyl-ester resin as a local reinforcement or a wrap. As a...C56-3452$9.42 -

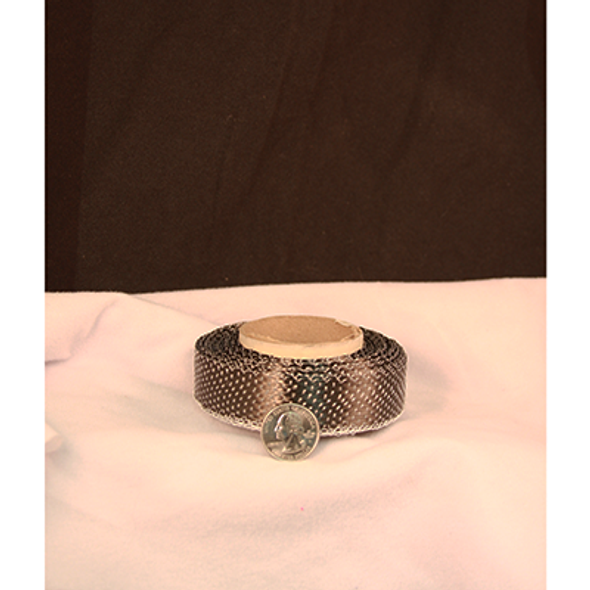

1in. Wide X 5.8 oz. Carbon Uni-directional Tape
$5.011in. Wide X 5.8 oz. Carbon Fiber Uni-directional Tape All cloths will be sold by the Linear Yard - unless otherwise stated. Great for use as a stiffner or ribs where localized reinforcement is needed. Held together with a fiberglass...C56-3513$5.01 -
2in. Wide X 5.8 oz. Carbon Uni-directional Tape
$7.222in. Wide X 5.8 oz. Carbon Fiber Uni-directional Tape All cloths will be sold by the Linear Yard - unless otherwise stated. Great for use as a stiffner or ribs where localized reinforcement is needed. Held together with a...C56-3522$7.22 -
3in. Wide X 5.8 oz. Carbon Uni-directional Tape
$7.853in. Wide X 5.8 oz. Carbon Fiber Uni-directional Tape All cloths will be sold by the Linear Yard - unless otherwise stated. Great for use as a stiffner or ribs where localized reinforcement is needed. Held together with a fiberglass...C56-3533$7.85 -
6K Carbon Tow 100FT Cut Roll
$5.14Hexcel AS4C - 6K Carbon Fiber Tow 4lb creel. Use for reinforcing specific areas, weaving, or filament winding. Priced per 100FT roll -Approx 14,736 feet.C59-0103$5.14 -
6K 1.5" Carbon Braid
$4.791.5" lay flat diameter carbon fiber braid. Approx 16oz/square yard. SOLD BY THE FOOT.Braid is a tube like structure that has the ability to conform to changing shapes and diameters. This material can be manipulated in diameter...C59-0221$4.79 -
6K 2" Carbon Braid
$5.532" lay flat diameter 6K Carbon Fiber Braid, 14.5oz/sq.yd. Sold by the foot.This carbon braid can conform to a range of diameters from about 1.35" to 3.5". Braid is great where you want to envelop and organic shape or cylinder...C59-0223$5.53 -
1.5" 12K Carbon Fiber Braided Tube
$5.1412K Braided Carbon Fiber Tube, 1.5" layflat diameter approx. 23.4oz/sq. yd. Sold by the foot.This carbon fiber fabric tubing is great for building organic shaped parts or cylindrical parts. It has the ability to shape to multiple diameters...C59-0241$5.14 -
2 5/8" 12K Carbon fiber Braided Tube
$8.152.625" Carbon Fiber Braided Fabric Tube. 2 5/8" is the lay flat diameter. Can be used on projects from 1.75" in round diameter to almost 5". 21.8oz per square yard weight at 2.5" layflat diameter. Sold by the foot.Carbon fiber...C59-0249$8.15 -
Style 350, 1.7 oz. X 38in. Kevlar Cloth
$46.31Style 350, 1.7 oz. X 38in. Kevlar 49, 3.0mils (0.08mm) thick. A lightweight tightly woven plain weave kevlar fabric. Used in modeling or areas were a lightweight aramid fiber is desired. All cloths will be sold by the Linear Yard - unless otherwise...C61-3604$46.31 -
Style 351, 2.2 oz. X 38in. Kevlar Fabric
$30.57Style 351, 2.2 oz. X 38in. Kevlar Fabric All cloths will be sold by the Linear Yard - unless otherwise stated.C61-3629$30.57 -
Style 353, 5.1 oz. X 38in. Kevlar Fabric
$38.07Style 353, 5.1 oz. X 38in. 4 harness satin weave Kevlar 49 fabric, 9 mils or 0.23mm thick. One of our most popular kevlar fabrics the 353 features a 4 harness satin weave making it quite flexible and drapeable. Use with epoxy or Vinyl-ester...C61-4402$38.07 -
Style 352, 5.1 oz./yd. X 50in Kevlar Fabric
$50.68Style 352, 5.1 oz./yd. X 50in Kevlar 49 fabric, 10 mils or 0.25mm thick. One of our most popular kevlar fabrics the 352 features a plain weave that is tightly woven for minimal gappage. Use with epoxy or vinyl-ester resin for best results...C61-4825$50.68 -
60" wide Kevlar 29 Fabric Style 745 Ballistics Grade Kevlar
$91.94Kevlar 29 Fabric Style 745 x 60" Ballistic Fabric This is a heavy duty fabric with a tight weave designed to be used in protection or ballistic armor applications. Style 745 weighs 13.3oz per square yard and is 25.3 mils thick (0.0253" or 0.64mm)...C61-7450$91.94
